Nylon Shackle vs Steel Shackle in LOTO Applications: Key Differences and Use Cases

Lockout/Tagout (LOTO) procedures are essential safety practices in industrial environments to prevent accidental energization or release of hazardous energy during maintenance or servicing. A critical component of any LOTO system is the padlock, specifically the type of shackle used. Among the most common options are nylon shackle padlocks and steel shackle padlocks. While they may look similar at first glance, their differences significantly affect safety, performance, and application suitability.

This article explores the key differences between nylon and steel shackles and how to choose the right one in LOTO environments.

1. What Is a Shackle in LOTO Padlocks?

The shackle is the U-shaped part of a padlock that passes through a lockout point (such as a breaker switch, valve hasp, or energy isolation device). In LOTO systems, the shackle is as important as the lock body because it directly interacts with equipment and environmental hazards.

Two primary materials are used:

• Nylon (non-conductive polymer)

• Steel (stainless steel or hardened steel)

Each offers distinct advantages depending on the working environment.

2. Nylon Shackle Padlocks: Safety Through Insulation

Nylon shackle padlocks are made from industrial-grade non-conductive plastic materials. Their most important characteristic is that they are electrically insulated.

Key Features:

• Non-conductive (electrical insulation)

• Corrosion-resistant

• Lightweight

• Resistant to chemical exposure

• Typically color-coded for safety identification

Advantages in LOTO:

The biggest advantage of nylon shackles is electrical safety. Because they do not conduct electricity, they significantly reduce the risk of electric shock when locking out energized or potentially energized equipment.

They are especially useful in:

• Electrical panel lockouts

• Circuit breaker isolation

• High-voltage environments

• Wet or humid conditions where conductivity risk increases

Limitations:

• Lower mechanical strength compared to steel

• Can be cut or damaged more easily under force

• Less suitable for high-security or heavy mechanical stress environments

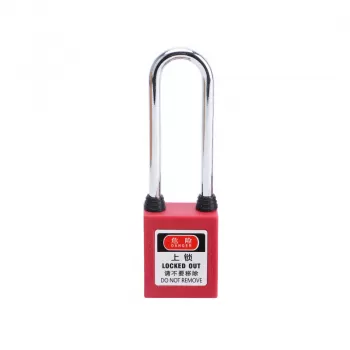

3. Steel Shackle Padlocks: Strength and Durability

Steel shackle padlocks are typically made from stainless steel or hardened steel, providing excellent mechanical strength and durability.

Key Features:

• High tensile and shear strength

• Resistant to cutting and prying

• Long service life in harsh environments

• Suitable for heavy-duty industrial applications

Advantages in LOTO:

Steel shackles excel in environments where mechanical security is the priority. They are highly resistant to physical tampering and are ideal for locking out equipment that does not involve electrical hazards.

Common applications include:

• Valve lockout systems

• Mechanical equipment isolation

• Industrial machinery (conveyors, pumps, motors)

• Heavy manufacturing environments (steel plants, mining)

Limitations:

• Electrically conductive (risk in electrical environments)

• Not suitable for live electrical systems

• Can corrode if not stainless steel or properly coated

4. Key Differences Between Nylon and Steel Shackles

Electrical Safety

• Nylon: Safe (non-conductive)

• Steel: Unsafe in electrical environments

Mechanical Strength

• Nylon: Moderate strength

• Steel: High strength and anti-tamper

Corrosion Resistance

• Nylon: Excellent

• Steel: Good (best with stainless steel)

Weight and Handling

• Nylon: Lightweight and easy to use

• Steel: Heavier but more robust

Best Use Case

• Nylon: Electrical LOTO applications

• Steel: Mechanical LOTO applications

5. LOTO Application Scenarios

Understanding the correct application is critical in safety compliance programs such as OSHA-based LOTO standards or corporate EHS policies.

Electrical Isolation (Use Nylon Shackle)

When working with electrical systems, safety is the top priority. Nylon shackles are preferred because they eliminate conductivity risks.

Typical scenarios:

• Locking circuit breakers before maintenance

• Electrical cabinet servicing

• Power distribution panel isolation

Mechanical Isolation (Steel or Nylon Both Acceptable)

In purely mechanical systems, electrical insulation is not required, so steel shackles can be safely used.

Typical scenarios:

• Locking valve handles in pipelines

• Securing conveyor systems

• Mechanical maintenance of rotating equipment

6. How to Choose the Right Shackle in Practice

Selecting the correct shackle type should always be based on a risk assessment, not convenience.

Use Nylon Shackle When:

• There is any possibility of electrical exposure

• Working in wet or conductive environments

• Compliance requires dielectric protection

• Multiple energy sources are involved (electrical + mechanical)

Use Steel Shackle When:

• Only mechanical energy is involved

• High physical security is required

• Equipment is in harsh industrial environments

• Cutting or tampering risk is high

Best Practice:

When in doubt, choose nylon shackles for safer electrical isolation scenarios. Many safety programs recommend standardizing nylon shackles for electrical LOTO and reserving steel for mechanical-only applications.

7. Industry Best Practices for LOTO Safety

To ensure effective lockout/tagout implementation:

• Always perform an energy source assessment before selecting lock type

• Standardize color coding for identification (e.g., red for danger, yellow for caution)

• Train employees on material differences and risks

• Use multi-lock hasps for group lockout procedures

• Regularly inspect padlocks for wear, cracks, or corrosion

• Never substitute steel shackles in electrical environments

LOTO safety is not just about compliance—it is about preventing life-threatening accidents.
