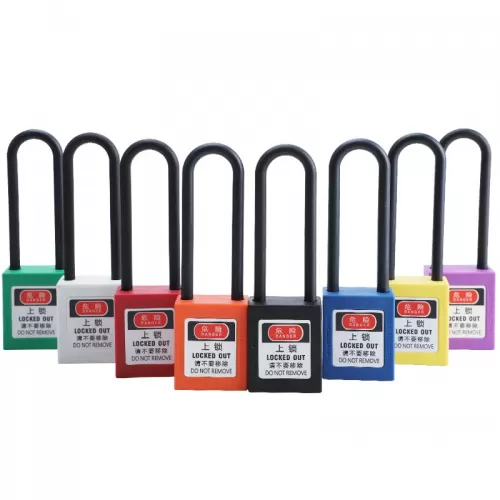

Thermoplastic Lockout Padlock
Thermoplastic Lockout Padlock
● Width: 38 mm, Body Height: 45 mm, Shackle Height: 76 mm, Shackle Diameter: 6 mm.
● The steel shackle is chrome plated,resists corrosion and cutting.
● All components of the 76mm safety padlock lockout (plastic, copper, brass) are non-magnetic and non-sparking.
● Keep workers safe with this dedicated safety padlock for Locking off equipment.
● Excellent lockout tool, supplied with a single key, extra keys may incur additional cost.
● Key retaining, meaning the key will not be released until the shackle is closed.
● 76mm Safety Padlock Lockout Specifically designed for Lockout/Tagout applications.
● Durable, light-weight and non-conductive.
● Strong body offers enhanced impact resistance.
● Padlock options available: Keyed alike, master keyed, keyed alike.
● The 76mm Safety Padlock Lock is available in 8 different colours.
| Product Number: | G76S |
| Material: | Nylon Body,Steel Shackle |
| Description: | 76mm Steel Long Shackle Safety Padlock Lock |
| Body Width: | 38mm |
| Body Length: | 45mm |
| Shackle Width: | 20mm |
| Shackle Length: | 76mm |
| Shackle Diameter: | 6mm |
| Color: | Red,Yellow,Blue,Green,Orange,Purple,Brown,Black,White,Gray |
| Key System: | KA,KD,MK,KAMK,GMK |
Feature Description Benefit Extended shackle length Longer reach to fit over bulky or tall locking points Solves situations where standard shackles cannot reach Wide coverage Can secure large equipment or components with complex shapes Reduces need for multiple locks Flexible fit Compatible with irregular valve wheels, handles with protrusions, or multi-layer guards Minimizes onsite modifications Maintains security function Shackle must be fully compressed to unlock; complies with OSHA/ANSI standards Ensures authorized access only Material variety Available in insulated (thermoplastic), corrosion-resistant (stainless steel), or high-strength (alloy steel) options Matches environmental & risk requirements Improved visibility Easier to see color coding and tags on a long shackle Enhances safety inspection efficiency
Thick or tall locking points
Example: heavy-duty electrical enclosures, thick machine bars, double-layered switch guards.
Irregular shapes or intermediate obstructions
Example: valve wheels with nearby bolts or brackets that block a standard shackle.
Locking multiple adjacent components with one lock
Long shackle can span several handles/valve stems, simplifying LOTO setup.
Outdoor or elevated equipment
Easier to reach and lock larger structures from a distance.
Existing standard shackles cannot reach
More economical than retrofitting equipment.
Power generation & distribution (large breakers, busbars)
Oil & gas / petrochemical (large valves, compressors)
Manufacturing (heavy machinery, stamping presses)
Water treatment (large-diameter valves, filtration units)
Construction & mining (large switches, hoist controls)
We have Lockout Padlocks in various sizes. You can view more thermoplastic safety padlocks. Each one has its own unique application. You can contact us to help you make and design.
